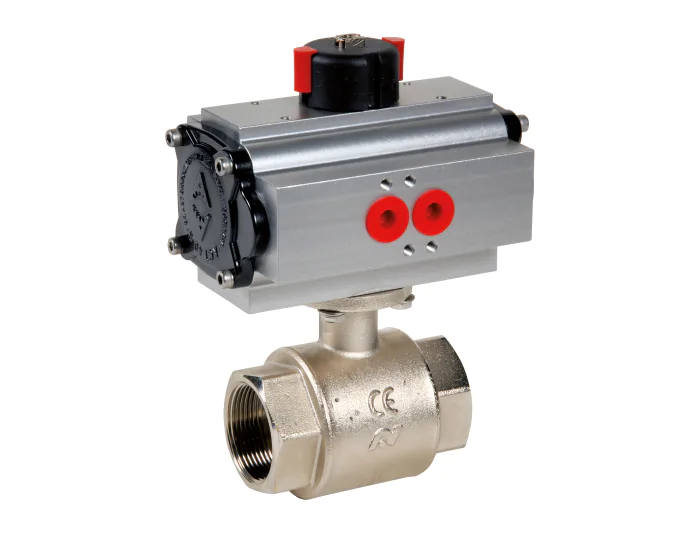

The 502XS 2-way brass ball valve has a CW617N body and ball. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN100. Direct mounting.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Brass CW614N |
| Adjustable limit screws | Yes |
| ATEX compatible | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 63.5 |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | NBR |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Brass CW617N |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' Double acting | 270002015100 | S1000704 |
€125.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' Spring return | 270002016100 | S1000705 |
€142.80
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' Double acting | 270003015100 | S1000706 |
€132.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' Spring return | 270003016100 | S1000707 |
€147.90
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' Double acting | 270004015100 | S1000708 |
€139.74
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' Spring return | 270004016101 | S1000709 |
€170.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN32 - 1''1/4 Double acting | 270005015100 | S1000710 |
€154.01
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN32 - 1''1/4 Spring return | 270005016102 | S1000711 |
€222.41
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN40 - 1''1/2 Double acting | 270006015101 | S1000712 |
€189.71
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN40 - 1''1/2 Spring return | 270006016103 | S1000713 |
€275.40
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN50 - 2'' Double acting | 270007015102 | S1000714 |
€247.44
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN65 - 2''1/2 Double acting | 270038015102 | S1000715 |
€339.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN65 - 2''1/2 Spring return | 270038016104 | S1000716 |
€450.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN80 - 3'' Double acting | 270039015103 | S1000717 |
€424.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN80 - 3'' Spring return | 270039016105 | S1000718 |
€571.57
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN100 - 4'' Double acting | 270040015104 | S1000719 |
€726.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN100 - 4'' Spring return | 270040016105 | S1000720 |
€856.80
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body Double acting DN8 - 1/4'' | 270090015100 | S1000721 |
€255.00
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body Spring return DN8 - 1/4'' | 270090016100 | S1000722 |
€218.97
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body Double acting DN10 - 3/8'' | 270091015100 | S1000723 |
€239.74
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body Spring return DN10 - 3/8'' | 270091016100 | S1000724 |
€226.07
(excl. btw)
|
add to cart |
